Reach Forklift Rental in DFW for rent in Irving, Texas

Reach Forklift Rental in DFW

GENIE

Equipment,ToolsEquipment,Tools

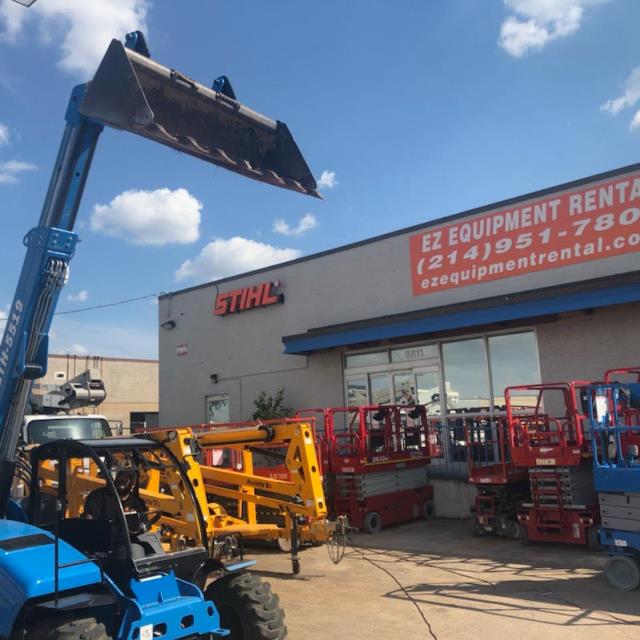

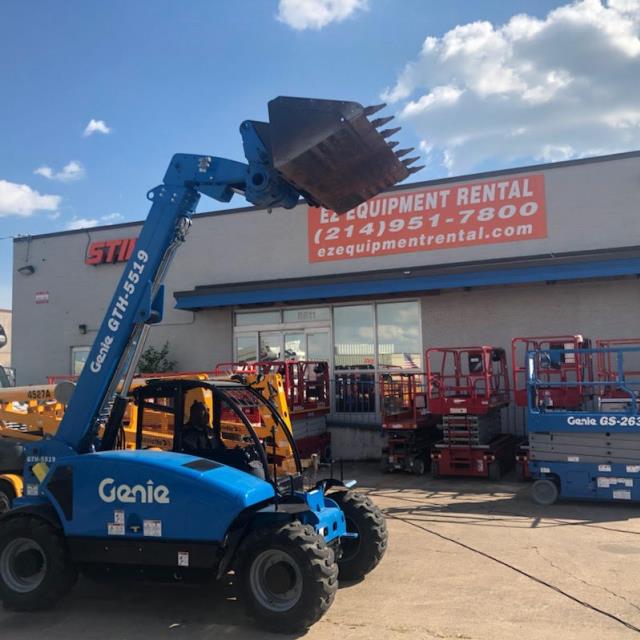

COMPACT ROUGH TERRAIN TELEHANDLER MODEL GTHTM-5519 Max Lift Capacity 5,500 lb | 2,495 kg Max Lift Height 18 ft 10 in | 5.74m Max Forward Reach 11 ft 3 in | 3.43 m Capacity at Max Height 4,400 lb | 1,996 kg Capacity at Max Reach 1,900 lbs | 862 kg * Weight will vary depending on options and/or country standards. ** Load ratings vary depending on attachment.B LOAD CHART GTHTM-5519**198 MEASUREMENTS US Metric ***Must be pulled with a three quarter ton truck.*** Maximum lift height 19 ft 5.79 m Reach 11 ft 3.35 m Reach at maximum height 1 ft 10 in 0.56 m Height, stowed 6 ft 4 in 1.93 m Length, stowed (without forks) 12 ft 7 in 3.84 m Width 5 ft 11 in 1.80 m Wheelbase 7 ft 7 in 2.32 m Ground clearance, center 1 ft 1 in 0.33 m Ground clearance, axle 10 in 0.25 m Fork cross section 1.6 x 4 in 40 x 100 mm Maximum lift capacity 5,500 lbs 2,500 kg Lift capacity at maximum height 4,400 lbs 1,995 kg Lift capacity at maximum reach 1,900 lbs 862 kg Drive speed 15 mph 24.1 km/h Draw bar pull 9,300 lbs 4,225 kg Break out force 8,100 lbs 3,674 kg Turning radius, outside (4WS) 11 ft 3.35 m Auxiliary hydraulic flow 18.5 gpm 70 lpm Auxiliary hydraulic pressure 3,918 psi 270 bar Tires, standard size 12 x 16.5 in, 10 ply POWER source Perkins 804D-33 4 cylinder diesel 63 hp (47.0 kW) Deutz D 2011 4 cylinder diesel 68 hp (50.0 kW) Electrical system System voltage 12 volt Alternator 95 amp Battery 720 CCA at 0 F (-18 C) Hydraulic tank capacity 16.4 gal 62 L Hydraulic system capacity (w/tank) 25 gal 95 L Fuel tank capacity 15.9 gal 60 L WEIGHT 9,800 lbs 4,450 kg STANDARDS COMPLIANCE ASME B 56.6, ISO 3471, ISO 3449
