LIFT - GENIE 45ft Z45-FE HYBRID for rent in Edmonds, Washington

LIFT - GENIE 45ft Z45-FE HYBRID

GENIE

Equipment,ToolsEquipment,Tools

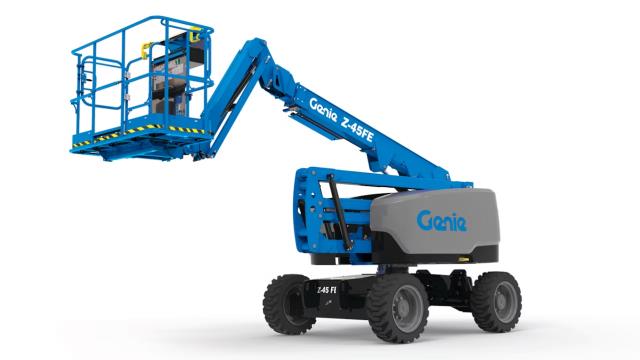

Two machines in one, the Genie Z -45 FE hybrid articulating boom lift is the ideal, environment-friendly solution for increased efficiency and low cost of operation. In all-electric mode it offers a full work day of emissions-free run time on a single battery charge. In hybrid mode, it offers one week of run time with a single tank of diesel. Weight, 14,460 lbs 6,559 kg Working height max 51 ft 8 in 15.92 m Platform height max 45 ft 8 in 13.92 m Horizontal reach max 22 ft 9 in 6.94 m Up and over clearance max 24 ft 7 in 7.50 m Platform length 2 ft 6 in 0.76 m Platform width 6 ft 1.83 m Height - stowed (tires) 7 ft 6 in 2.29 m Length - stowed (tires) 20 ft 1 in 6.11 m Width 7 ft 6 in 2.29 m Wheelbase 6 ft 8 in 2.03 m Ground clearance - center 1 ft 4 in 0.41 m Lift capacity max unrestricted 660 lbs 300 kg Platform rotation 160 Jib length 5 ft 1.52 m Vertical jib rotation 135 Turntable rotation 355 Turntable tailswing 1 ft 3 in 0.37 m Drive speed - stowed 4.5 mph 7.24 km/h Drive speed - raised 0.68 mph 1.1 km/h Gradeability - stowed 45 % Tilt sensor activation (front to back/side to side) 4.5 / 4.5 Turning radius - inside/outside 7 ft 10 in / 14 ft 1 in 2.40 m / 4.30 m Fuel tank capacity 17 gal 64 L Sound Pressure level (ground workstation) 70 dBA (DC) / 80 dBA (FE)
