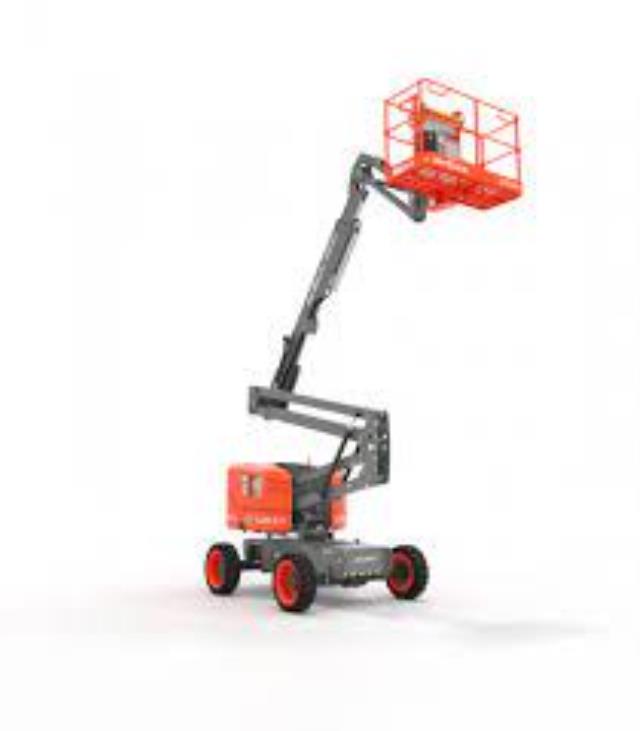

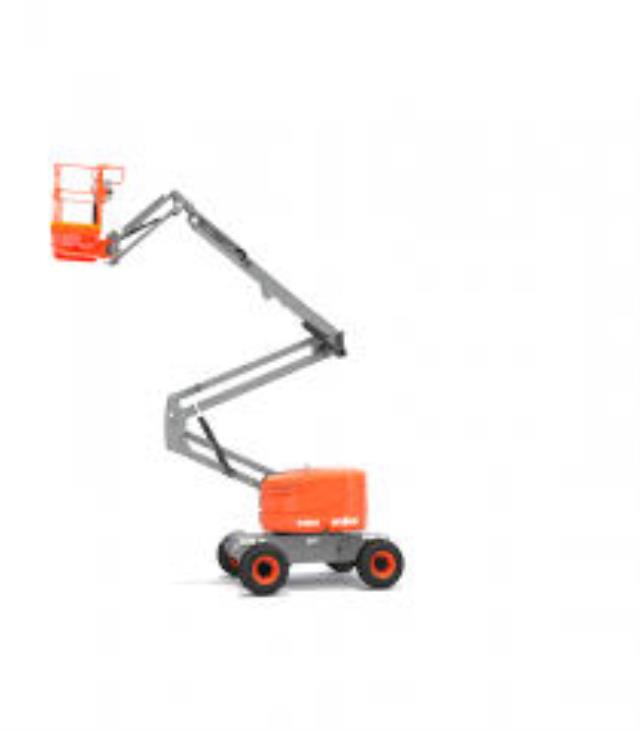

ART BOOM LIFT RENTAL IN DFW for rent in Irving, Texas

ART BOOM LIFT RENTAL IN DFW

SKYJACK

Equipment,ToolsEquipment,Tools

Work Height 51 (15.54 m) Platform Height 45 (13.72 m) Horizontal Reach 22 9 (6.93 m) Up and Over Height 24 5.25 (7.45 m) A Platform Size 30 x 72 (0.76 x 1.83 m) B Stowed Width 7 6 (2.29 m) C Tailswing 2 (0.61 m) D Stowed Height 6 9 (2.06 m) E Transportation Height 7 1 (2.16 m) F Stowed Length 19 8 (6.00 m) G Transportation Length 15 7 (4.75 m) H Wheelbase 6 8 (2.03 m) I Ground Clearance 15.25 (0.39 m) Rotation 355 NC Platform Rotation 170 Jib Length 4 8 (1.40 m) Jib Range +/- +70 / -75 Weight 11,190 lbs (5,075 kg) Gradeability 40% Turning Radius (Inside) 4 11.25 (1.50 m) Turning Radius (Outside) 14 3 (4.34 m) Axle Oscillation 5 (12.70 cm) Drive Speed (High speed) 2.5 mph (4.0 km/h) Capacity 660 lbs (300 kg) Maximum Wind Rating 28 mph (12.5 m/s) Personnel Rating at Max Wind Rating 2 Tire Type Solid Tire Size 10 x 31 Diesel Engine Kubota D1305 - 24.8 HP (18.5 KW) Fuel Tank Capacity 17 gal. (64 L) Hydraulic Reservoir 24 gal. (91 L)
